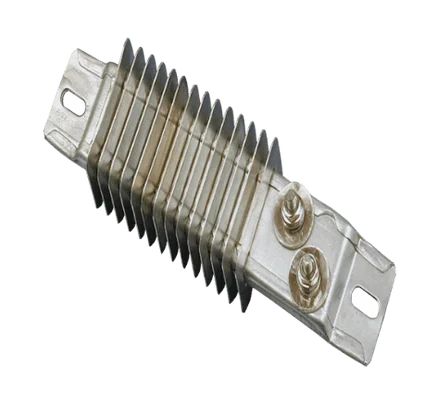

Caloritech 6″ 240V 150W SS Series Strip Heater (SS1022)

Description

The Caloritech 6″ 240V 150W SS Series Strip Heater (SS1022) is an efficient and economical solution for a wide range of industrial and commercial heating applications. This particular model, part of the robust SS Series, is engineered to deliver consistent and controlled heat, making it suitable for processes requiring reliable thermal management. Its straightforward design allows for easy integration into existing systems, providing essential warmth for various tasks, from surface heating to environmental control. The SS1022 is a foundational component for ensuring optimal operating temperatures and protection against environmental factors.

KEY FEATURES AND BENEFITS:

• Consistent Heat Output: Delivers a steady 150W of power, ensuring uniform heat distribution across the heated surface or volume, critical for process stability and product quality.
• Versatile Application Range: Suitable for a broad spectrum of uses including heating platens, dies, molds, tanks, and piping, as well as serving as a critical element in drying cabinets and ovens.
• Moisture Protection: Effectively prevents moisture buildup in critical equipment like motors and control panels, safeguarding sensitive components and extending their lifespan.
• Winterization Capability: An ideal choice for preventing freezing and maintaining fluidity in hoppers, conveyors, and ducts, ensuring continuous operation in colder environments.
• Industrial Standard Construction: Built with an aluminized steel sheath for reliable performance in demanding industrial settings, providing good corrosion resistance.
• Easy Integration: Features slotted mounting holes for simple and secure surface installation, allowing for quick deployment into various setups.
• Economical Operation: Provides an efficient heating solution without excessive power consumption, contributing to cost-effective industrial operations.

SPECIFICATIONS:

• Model: SS1022
• Dimensions: 6.0″ (Length) x 1.5″ (Width) x 1.5″ (Height)
• Voltage: 240V
• Wattage: 150W
• Heat Output: 512 Btu/hour
• Sheath Material: Aluminized steel
• Max Exposure Temperature (Aluminized Steel): 1000°F (538°C)
• Watt Density: 15.2 Watts/in² (2.4 Watts/cm²)
• Terminals: Two offset bolt-type terminals
• Mounting: Slotted holes (5/8″ L x 9/32″ W) for surface mount
• Hardwired: Yes
• Warranty: 1-year limited manufacturer’s warranty
• Safety Certifications: CSA, UL Safety Certified

HOW TO USE:

1. Mounting: Securely attach the Caloritech SS1022 strip heater to the desired surface using the pre-drilled slotted mounting holes. Ensure the mounting surface is flat and can withstand the operating temperature of the heater.
2. Electrical Connection: Connect the heater to a 240V power supply. The heater features two offset bolt-type terminals; ensure correct wiring following local electrical codes and safety guidelines. It is designed to be hardwired.
3. Temperature Control (Optional but Recommended): For precise temperature regulation, integrate an external temperature control device. While the heater does not come with an integrated thermostat, it is compatible with separate control panels (e.g., Caloritech CPA or CPB), mechanical thermostats, or bi-metal thermostats mounted on the heater surface.
4. Power On: Once securely mounted and wired, apply power to the heater. Monitor the initial operation to ensure proper functioning.
5. Monitoring: Regularly check the operating temperature and performance as part of routine maintenance to ensure the heater is functioning optimally for its intended application.

BENEFITS OF USING CALORITECH 6″ 240V 150W SS SERIES STRIP HEATER (SS1022):

• Provides stable and consistent heat for sensitive processes.
• Enhances process efficiency through reliable temperature control.
• Protects electrical and mechanical components from moisture damage.
• Supports winterization to prevent material freezing and maintain flow.
• Robust construction ensures long operational life and durability.
• Simple installation reduces setup time and operational delays.
• Energy-efficient operation minimizes power consumption.

FEATURES:

• Sheath constructed from aluminized steel: Offering resistance against common industrial environments.
• Internal resistance wire made from high-temperature alloy: Precisely coiled for effective heat generation.
• Resistance wire is uniformly spaced: Within a specialized refractory material, contributing to even heat distribution.
• Internal components are compressed under high pressure: For enhanced thermal conductivity and operational integrity.
• Terminals are positioned offset at one end: For streamlined electrical connections.
• Can operate at lower voltages: For reduced wattage output as required by specific application needs.
• Designed to be surface-mounted: Allowing for direct contact heating in various setups.
• Includes certifications from CSA and UL: For safety and quality assurance.
• Suited for OEM applications: Including packaging and food warming machinery.
