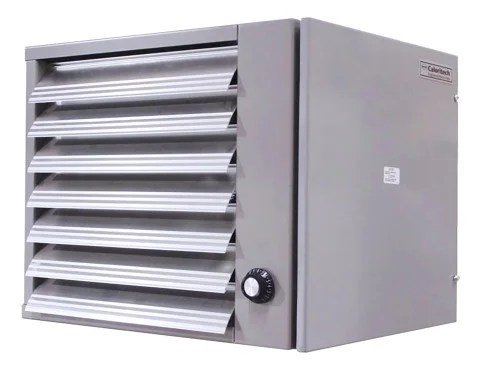

Caloritech 20kW 600V GX Forced Air Unit Heater w/T‘stat (GX208CT)

Description

Caloritech 20kW 600V GX Forced Air Unit Heater w/T’stat (GX208CT) is a robust and high-performance heating solution specifically engineered for the most demanding industrial and heavy-duty commercial applications. This 3-phase unit delivers substantial heat output, making it ideal for maintaining optimal temperatures in large, challenging environments where standard heaters may fall short. Its heavy-duty construction is designed to withstand rigorous use, reduce downtime, and minimize maintenance costs in critical industrial settings. From mine shafts and pulp and paper mills to welding shops and chemical plants, the GX208CT provides reliable and consistent warmth, ensuring operational efficiency and comfort in harsh conditions.

KEY FEATURES AND BENEFITS:

• High Power Output: Delivers 20 kW of heating power (68,240 BTU/hour) to efficiently warm large industrial and commercial spaces.
• Heavy-Duty Construction: Built with a 14-gauge steel cabinet and an epoxy painted finish (ASA61 Grey) for superior resistance to corrosion and physical demands, ensuring longevity and reliability.
• Integrated Thermostat: Features a built-in thermostat with a range of 41°F to 100°F (5°C to 38°C) for precise temperature control and energy efficiency.
• Optimized Airflow: Equipped with a 1/3 HP motor and a factory-balanced aluminum fan blade, providing 1,800 CFM of airflow for effective heat distribution.
• Enhanced Motor Durability: Motor is mounted outside the element bundle with sealed ball bearings and totally enclosed construction, protecting it from heat and allowing for easier maintenance.
• Robust Heating Elements: Utilizes Caloritech™ type KX finned tubular sheathed elements with epoxy sealed terminals to resist contamination from moisture and airborne impurities.
• Versatile Mounting: Designed for both wall and ceiling mounting, with a ceiling mounting bracket included for flexible installation.
• Safety Assured: Includes an automatic reset high-limit and CSA approval for both horizontal and vertical airflow, prioritizing operational safety.

SPECIFICATIONS:

• Model: GX208CT
• Power Output: 20 kW
• BTU Output: 68,240 BTU/hour
• Voltage: 600 V
• Phase: 3-Phase
• Amperage: 20.3 Amps
• Blower CFM: 1,800 cfm
• Motor Horsepower: 1/3 HP
• Thermostat Range: 41°F to 100°F (5°C to 38°C)
• Cabinet Material: 14-gauge steel
• Cabinet Finish: Epoxy painted (ASA61 Grey)
• Dimensions (L x W x H): 31.0 x 23.0 x 18.5 inches (78.7 x 58.4 x 47 cm)
• Weight: 105 – 109 lbs

HOW TO USE:

1. Mounting: Securely mount the unit heater to a wall or ceiling using appropriate hardware. A ceiling mounting bracket is supplied. Ensure sufficient clearance around the unit for proper airflow and maintenance.
2. Electrical Connection: Have a qualified electrician connect the heater to the 600V, 3-phase power supply according to local electrical codes and the provided wiring diagrams.
3. Thermostat Setting: Set the integrated thermostat to your desired temperature within the 41°F to 100°F (5°C to 38°C) range. The heater will cycle on and off automatically to maintain this temperature.
4. Airflow Adjustment: Adjust the individually adjustable louvers to direct the heated air where it is most needed within the space.
5. Operation: Once powered and set, the heater will begin to operate, distributing forced hot air. Monitor the unit’s performance and ensure proper airflow.

BENEFITS OF USING CALORITECH 20KW 600V GX FORCED AIR UNIT HEATER W/T’STAT (GX208CT):

• Reduced Downtime: Its robust construction minimizes mechanical failures and the need for frequent repairs, ensuring continuous heating in critical operations.
• Cost Efficiency: Engineered for durability, it contributes to lower long-term maintenance expenses compared to standard heaters.
• Consistent Thermal Performance: Delivers powerful and evenly distributed heat, crucial for maintaining stable temperatures in large and exposed industrial areas.
• Versatile Application: Effectively serves a wide range of challenging environments including factories, warehouses, boiler rooms, and specific industrial process areas.
• Enhanced Safety: Built-in safety features like an automatic reset high-limit provide operational security and peace of mind.
• User-Friendly Control: The integrated thermostat allows for easy and precise temperature management, adapting to specific heating requirements.

FEATURES:

• Compact design: Allows for diverse placement options in industrial spaces.
• Full-sized control panel: With a hinged, removable door, meeting EEMAC 12 standards.
• Epoxy-sealed element terminals: Prevent contamination from moisture and airborne particulates.
• Optional disconnect switch: With door interlock for added safety during servicing.
• Optional fused control circuit: For enhanced electrical protection.
• Fan delay function: Included in both ON and OFF cycles to optimize heat dispersion.
• Terminals for continuous fan operation: Connectable to a remote switch.
• Available options: HRC main load fuses and manual reset high limit.
• Low voltage relay option: For remote 24V thermostat integration.
• CSA approved: Designed for flexible installation orientations.
