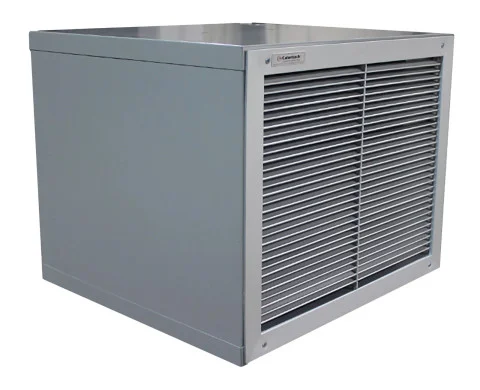

Caloritech 10kW 600V GE Forced Air Unit Heater w/T‘stat (GE108CT)

Description

The Caloritech 10kW 600V GE Forced Air Unit Heater w/T’stat (GE108CT) provides consistent and efficient heating for a wide range of industrial and commercial spaces. Engineered for regular duty applications, this electric forced air heater is a practical choice for environments requiring dependable warmth. Its robust construction ensures reliable operation, surpassing typical industry standards for similar models.

This heater is well-suited for diverse settings such as factories, warehouses, parking garages, and boiler rooms. It also provides effective heating in larger venues like arenas and grandstands, as well as in mechanical rooms, shopping malls, display areas, and commercial storefronts. The integrated thermostat allows for precise temperature management, ensuring comfort and energy efficiency. With its powerful 10 kW output, the GE108CT heater delivers substantial warmth, making it an essential component for climate control in various commercial and industrial facilities.

KEY FEATURES AND BENEFITS:

• Integrated Thermostat & Contactor: Features a built-in thermostat (adjustable from 40-100°F / 5-40°C) and a contactor, simplifying installation and providing direct temperature control without additional components.
• High Heat Output: Delivers 10,000 Watts (10 kW) of power, translating to 34,120 BTU/hour, capable of heating substantial areas effectively.
• Flexible Voltage: Operates at 600V, and is field convertible for either 1-phase or 3-phase power, offering adaptability to various electrical setups.
• Robust Construction: The 18-gauge steel cabinet, phosphate coated and epoxy painted, provides enhanced protection and longevity in demanding environments.
• Safety Mechanisms: Includes overheat protection, a fused control circuit, and a manual reset high limit, ensuring safe operation and protecting the unit from damage.
• Adjustable Airflow: Equipped with a blower and individually adjustable air flow louvers, allowing for precise direction of heat for optimal distribution.

SPECIFICATIONS:

• Model Number: GE108CT
• Manufacturer: Caloritech (Thermon)
• Heat Type: Forced Air
• Power Output: 10 kW (10,000 Watts)
• Heat Output: 34,120 BTU/hour
• Voltage: 600V (1-phase or 3-phase, field convertible)
• Amperage: 17.7 Amps
• Thermostat Range: 40-100°F / 5-40°C
• CFM: 760 cfm
• Cabinet Material: 18-gauge steel
• Cabinet Finish: Phosphate coated, epoxy painted (ASA61 Grey)
• Motor Type: Permanently lubricated, with built-in thermal overloads
• Dimensions (L x W x H): 15.5″ x 17″ x 14″
• Weight: 55 lbs
• Certifications: CSA C/US Safety Certified

HOW TO USE:

1. Mounting: Securely mount the heater to a fixed location, either on a wall or ceiling, using the supplied ceiling mounting bracket. Ensure all mounting hardware is properly torqued. Observe minimum clearance requirements, including at least 72 inches of discharge distance.
2. Electrical Connection: Connect the heater to the appropriate 600V electrical supply (either 1-phase or 3-phase, as configured) according to local electrical codes and the provided wiring diagram in the owner’s manual. Ensure the fused control circuit is correctly wired.
3. Thermostat Setting: Adjust the integrated thermostat to your desired temperature within the range of 40-100°F (5-40°C). The heater will activate automatically when the ambient temperature falls below the set point.
4. Airflow Adjustment: Direct the heated air by adjusting the individual air flow louvers. This allows for optimal heat distribution across the space being heated.
5. Operation Mode: Utilize the “Fan Only” switch if you wish to circulate air without activating the heating elements, useful for ventilation or cooling in warmer conditions.
6. Safety Reset: In case of an overheat condition, the manual reset high limit will trip. Allow the unit to cool, then manually reset the high limit before resuming operation. Refer to the owner’s manual for specific troubleshooting steps.

BENEFITS OF USING CALORITECH 10KW 600V GE FORCED AIR UNIT HEATER W/T’STAT (GE108CT):

• Consistent Warmth: Provides a steady and reliable source of heat, maintaining comfortable temperatures in large spaces.
• Energy Management: The integrated thermostat enables precise temperature control, potentially leading to energy savings by preventing overheating.
• Space Optimization: Its compact design and ability to be mounted on walls or ceilings save valuable floor space, crucial in industrial and commercial settings.
• Reduced Installation Complexity: With a built-in thermostat and contactor, the need for separate control components is eliminated, streamlining installation.
• Enhanced Safety: Multiple safety features, including overheat protection and a fused control circuit, contribute to secure and worry-free operation.
• Long-Term Value: Constructed from high-quality materials, this heater is designed for extended service life, reducing the need for frequent replacements.

FEATURES:

• Permanently lubricated motors with built-in thermal overloads.
• Motors are mounted outside the element bundle for improved lifespan.
• Epoxy painted fan blade and motor for corrosion resistance.
• Supply of a ceiling mounting bracket for immediate installation.
• Option for wall mounting with separate wall brackets.
• Designed for non-hazardous environments.
• Ability to convert between 1-phase and 3-phase power in the field.
• “Fan Only” switch for air circulation without heating.
