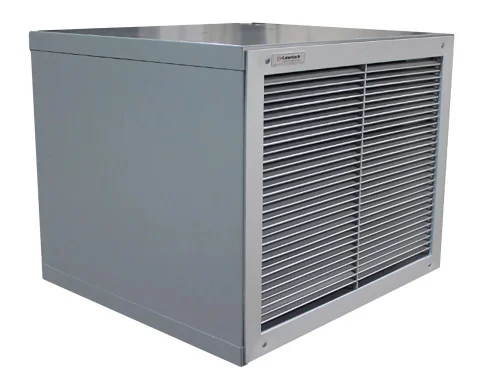

Caloritech 10kW 480V GE Forced Air Unit Heater w/T‘stat (GE107CT)

Description

The Caloritech 10kW 480V GE Forced Air Unit Heater w/T’stat (GE107CT) is engineered for regular duty industrial and commercial space heating. This unit is an ideal choice for maintaining comfortable temperatures in a wide array of non-hazardous environments, including factories, warehouses, parking garages, boiler rooms, arenas, grandstands, mechanical rooms, shopping malls, display areas, and commercial storefronts. Its design and construction are developed to provide dependable heating performance, delivering 10,000 Watts (34,120 BTU/hour) of warmth. The GE107CT comes with a built-in thermostat, offering temperature control directly at the unit. Its robust build quality distinguishes it, ensuring consistent operation and effective heat distribution for its intended applications.

KEY FEATURES AND BENEFITS:

• Integrated Thermostat: Features a built-in thermostat for convenient temperature control, allowing precise regulation of the heating output to maintain desired environmental conditions.
• High Heating Output: Provides 10 kW (10,000 Watts or 34,120 BTU/hour) of heating power, ensuring effective warming of large commercial and industrial spaces.
• Versatile Power Configuration: Operates at 480V and is field convertible between 1-phase and 3-phase power, offering flexibility for various electrical setups.
• Robust Construction: Built with an 18-gauge steel cabinet and tubular heating elements, designed for the demands of regular duty industrial and commercial environments.
• Optimized Airflow: Equipped with adjustable air flow louvres and a powerful blower that delivers 760 CFM, enabling efficient and directed heat distribution.
• Safety Features: Includes manual reset high limit overheat protection and a fused control circuit, enhancing operational safety.
• Fan Operation Options: Features a “Fan Only” switch, allowing for air circulation without heating, which can be beneficial for ventilation purposes.

SPECIFICATIONS:

• Heating Output: 10 kW (10,000 Watts / 34,120 BTU/hour)
• Voltage: 480V
• Amperage: 17.7 Amps
• Phase: 1 or 3 phase (field convertible)
• Construction: 18-gauge steel cabinet, epoxy painted (ASA61 Grey)
• Motor HP: 1/20 HP
• Motor RPM: 1550 RPM
• Thermostat Range: 41°F to 100°F (5°C to 38°C)
• Blower CFM: 760 CFM
• Product Weight: 55 lbs
• Certifications: CSA C/US

HOW TO USE:

1. Mounting: Securely mount the unit using the supplied ceiling mounting bracket. Ensure adequate clearance from walls and other objects as specified in the installation manual.
2. Electrical Connection: Have a qualified electrician connect the heater to the appropriate 480V power supply, ensuring correct phase configuration (1-phase or 3-phase as needed).
3. Thermostat Setting: Set the built-in thermostat to your desired temperature within the range of 41°F to 100°F (5°C to 38°C).
4. Power On: Turn on the power supply to the unit. The fan and heating elements will activate when the ambient temperature falls below the thermostat setting.
5. Fan Only Operation (Optional): If only air circulation is desired without heating, activate the “Fan Only” switch on the unit.
6. Adjust Louvres: Adjust the air flow louvres to direct the warm air where it is most needed in the space.
7. Maintenance: Periodically inspect the unit for dust accumulation and ensure the fan motor is free from obstructions. Refer to the product manual for detailed maintenance instructions.

BENEFITS OF USING CALORITECH 10KW 480V GE FORCED AIR UNIT HEATER W/T’STAT (GE107CT):

• Effective Space Heating: Provides substantial heating capacity to quickly and effectively warm large commercial and industrial spaces.
• Reliable Performance: Engineered with robust components and construction, ensuring consistent and dependable operation in regular duty environments.
• Reduced Installation Complexity: Includes a built-in thermostat, simplifying installation and wiring compared to units requiring separate thermostat wiring.
• Adaptable to Site Conditions: Field convertible phase options provide flexibility for various electrical system configurations.
• Improved Air Circulation: The powerful integrated fan aids in distributing warmth evenly throughout the heated area, reducing cold spots.
• Enhanced Safety: Built-in safety features like overheat protection contribute to secure operation within its specified parameters.

FEATURES:

• Epoxy painted internal fan blade and motor for corrosion resistance.
• Permanently lubricated motors ensuring long-term performance.
• Motors positioned outside the element bundle, promoting cooler operation and extended motor life.
• Ability to convert between 1-phase and 3-phase power directly in the field.
• Includes a low voltage relay for compatibility with remote 24V thermostat controls.
• Fused control circuit for electrical protection.
• Adjustable air flow louvres to control heat direction.
• CSA C/US certified for quality and safety standards.
