Boyo/Vision Tech 7″ Rear-View Mirror Wireless Cam System (BOYVTC474RB)

Description

The Boyo/Vision Tech 7″ Rear-View Mirror Wireless Cam System (BOYVTC474RB) is a dedicated wireless backup camera and mirror monitor system designed to provide drivers of cars, trucks, SUVs, and vans with a clear, reliable view of the area behind their vehicle when reversing. This system eliminates the long cable run typically required, making installation simpler while delivering a secure, digital video signal to the driver. The result is improved visibility and greater confidence when parking or maneuvering.

KEY FEATURES AND BENEFITS:

• 7” Replacement Mirror Monitor: The large 7 inch TFT-LCD screen replaces your existing rear-view mirror, putting the live video feed in a natural line of sight for safe reversing without cluttering the dashboard.
• Wireless Digital Transmission: The built-in WiFi transmitter and receiver establish a secure, private connection, minimizing video interference and ensuring a stable picture when you shift into reverse.
• High-Resolution Display: The 800×480 RGB monitor resolution paired with 1000 cd/m² LED brightness provides a detailed, exceptionally bright image that is easy to see, even in daylight.
• Automatic Image Control: The monitor features Automatic Brightness Adjustment to compensate for changing ambient light, and the system is compatible with both NTSC and PAL video formats with auto-switching.
• Wide Viewing Angle Camera: The bar-type license plate camera has a 170° diagonal and 120° horizontal viewing angle, providing maximum coverage to spot obstacles and pedestrians behind the vehicle.
• All-Weather Reliability: The camera’s metal housing and high IP68 waterproof rating ensure it can withstand harsh weather, car washes, and road debris for consistent performance.

SPECIFICATIONS:

• Model Number: VTC474RB
• Monitor Type: 7” Replacement Type TFT-LCD
• Monitor Resolution: 800×480 RGB
• Monitor Brightness: 1000 cd/m²
• Camera Sensor: 1/3” CMOS Image Color Sensor
• Camera Resolution: 756(H)×504(V)
• Horizontal Viewing Angle: 120°
• Diagonal Viewing Angle: 170°
• Waterproof Rating: IP68
• Wireless Frequency: WiFi (2.4 GHz)
• Power Supply: 12 VDC (for both Camera and Monitor)
• Video Compatibility: NTSC or PAL (Auto Switch)

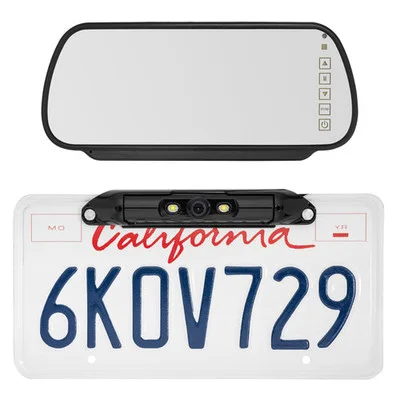

• Included in the Box: Wireless Rear-View Mirror Monitor, Wireless Bar-Type License Plate Camera, Required Power Harnesses/Cables
• UPC: 850005493082
• Single Unit Weight: 1.54 lbs
• Single Unit Dimensions: 11.22” × 6.69“ × 2.75”

HOW TO USE:

• Mount the Camera: Screw the Shiny Black Bar Type camera over your rear license plate, ensuring the lens angle is adjusted for the best view of the rear bumper area.
• Connect Camera Power: Wire the camera’s power harness to a 12 VDC power source that is activated when the vehicle is in reverse gear (usually connecting to the reverse light circuit).
• Install the Monitor: Remove your factory rear-view mirror and install the new 7” Replacement Type Monitor, which is designed to fit the factory mounting point.
• Connect Monitor Power: Connect the monitor’s power cable to a switched 12 VDC source inside the cabin.
• System Pairing: Power on both the camera and monitor. The units should automatically pair using their built-in WiFi transmitter and receiver. If manual pairing is needed, follow the manufacturer’s instructions.
• Operation: When the vehicle is in reverse, the monitor will automatically display the live video feed from the camera, complete with parking guidelines.

BENEFITS OF USING BOYO/VISION TECH 7″ REAR-VIEW MIRROR WIRELESS CAM SYSTEM (BOYVTC474RB):

• Improved Reversing Safety: Offers an immediate, unobstructed view of the area directly behind the vehicle, minimizing blind spots and reducing the risk of accidental contact with objects or people.
• Simplified Parking: The wide viewing angle and on-screen guidelines make parallel parking and maneuvering in tight spaces significantly easier and less stressful.
• Clean Installation: The wireless video link avoids the complicated task of running video cables from the trunk/hatch through the entire vehicle to the dashboard.
• OEM-Like Appearance: The monitor is a full replacement mirror, providing a factory-installed look rather than a bulky add-on, maintaining the vehicle’s interior aesthetics.
• Dependable Performance: The digital wireless signal and high-quality components ensure the system is ready to operate clearly whenever you need to back up.

FEATURES:

• Equipped with a 1/3” CMOS Image Sensor for high-quality video output.
• Built-in WiFi transmitter in the camera and receiver in the monitor for wireless connection.
• Durable metal housing on the camera for protection in tough conditions.
• Includes integrated LED lights with On/Off control for improved low-light visibility.
• Monitor supports adjustable image display for driver preferences.
• Brightness of 1000 cd/m² ensures clear visibility even in daylight.
• Camera resolution of 756(H)×504(V) for a detailed rear image.
• Utilizes patented U.S. technology (US7,195,405 & USD 705,845).
• Works with 12 VDC vehicle power systems.
• Camera mounts neatly over the license plate for easy installation.
