Description

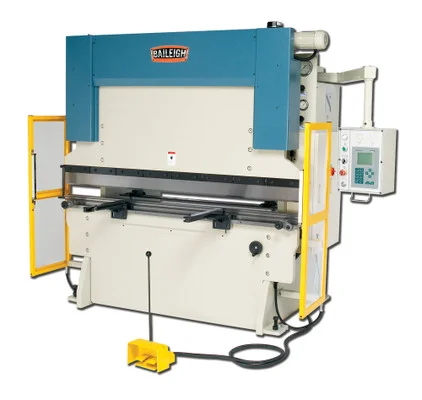

Baleigh 90 Ton Hydraulic Press Brake 220V 3Phase 78″ with Delem CNC Control (1000837) is designed for high precision and durability in sheet metal bending. This powerful machine produces up to 90 tons of hydraulic pressure and can bend sheet metal across its full 78” width.
Equipped with a Delem touchscreen controller, this 1000837 3phase press brake allows for easy programming of the stroke and back gauge. The encoder-controlled hydraulic cylinders ensure precise movement, while the digital readouts (DROs) display the stroke and back gauge positions for accurate repeat bends.
- Specifications and Dimensions
- Length: 103 in.
- Width: 76 in.
- Height: 99 in.
- Net Weight: 9000 lbs
- Back Gauge Length: 17144
- Return Speed: 2.36″ / sec.
- Nc Control Type: Delem
- Oil Capacity: 45 gal
- Throat Depth: 7.87″
- Stroke Distance: 5.9″
- Table Width: 6.29″
- Approach Speed: 3.14″ / sec.
- Bed Length: 17145
- Bending Speed: .236″ / sec
- Maximum Capacity: 90 tons
- Distance Between Housings: 61″
- Distance From Table To Ram: 11.81″
- Power: 220V / 3-phase
- Key Features and Benefits
- Hydraulic auto-crowning for consistent bends
- Delem touchscreen controller for easy programming
- Heavy-duty electrowelded steel frame for stability
- Digital readouts (DROs) for accurate repeat bends
- 6-sensor light curtain for safety
- Includes front material rests
- Lifetime technical support
