Baileigh Spindle Shaper 5 HP 220V Single Phase 35 x 28 Working Table (1007609)

Description

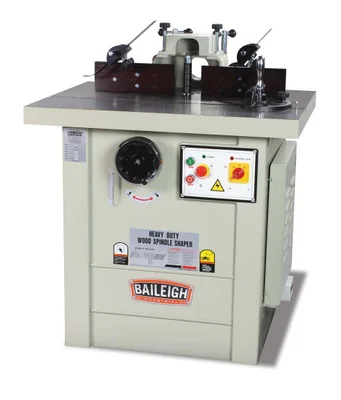

Baileigh SS-3528 Spindle Shaper 5 HP 220V Single Phase 35 x 28 Working Table (1007609) is a versatile and powerful machine perfect for any shop. This spindle shaper is designed to provide precision and efficiency, making it a great addition to your woodworking tools.

The 1007609 spindle shaper is the first in the 3528 series and is the most economical in the series. This spindle shaper is powered by a 5 hp 220 volt single phase motor that offers four spindle speeds. Speeds are changed by selecting the appropriate belt for the speed desired.

• Specifications and Dimensions
  • Item Number: SS-3528
  • Shipping Weight: 660 lbs
  • Table Size (Length): 35.5″
  • Table Size (Width): 28″
  • RPM: 3600/5100/8000/10000
  • Spindle Travel: 3″
  • Power: 220V Single Phase
  • Horse Power: 5
  • Weight (lbs): 660
  • Shipping Dimensions (Inches): 48x45x48



• Key Features and Benefits
  • Powered by a robust 5 HP motor for high performance.
  • Four spindle speeds: 3600, 5100, 8000, and 10000 rpm for versatility.
  • Precision machined 28” x 35” table for accuracy.
  • Includes ¾”, 1” and 1-1/4” spindles with inserts for various applications.
  • Comfortable 35” working height.
  • Comes with all necessary table hardware and fences.
  • Standard 4” dust port for a clean working environment.
