DESCRIPTION

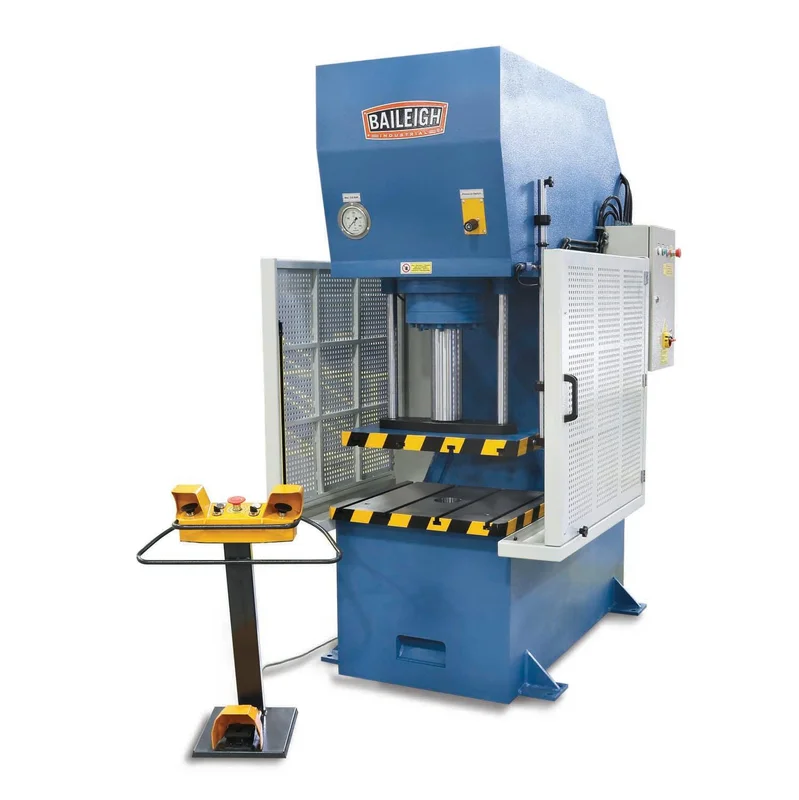

The CFP-70HD C-frame hydraulic press machine features:
- 70-ton downforce
- C-frame press
- Perfect for pressing or straightening
- Fully welded construction
- Hydraulically-operated
- Adjustable slide pressure
- Two-speed pressing
- Separate control pedestal
- 480V 3-phase
SPECIFICATIONS
| Item Number | CFP-70HD |
|---|---|
| Down Force | 70 tons |
| Return Force | 9 tons |
| Production Pressure | 3423 psi |
| Return Speed | 1.1″ / sec |
| Bolster Size | 27.5″ x 23.625″ x 1.75″ |
| Shank Hole | 3.9″ |
| Motor | 12 hp |
| Oil Capacity | 24 gal |
| Throat Depth | 25.6″ |
| Max. Opening Height | 20.625” |
| Idle Speed | 1.26″ per sec. |
| Pressing Speed | .28″ per sec. |
| Stroke Length | 16.5″ |
| Table Height | 26.75″ |
| Power | 480V / 3-Phase |
| Shipping Weight | 6600lbs |
| Shipping Dimensions (Inches) | 68x52x94 |
* specifications subject to change without notice.
