Description
With a 1” plate steel framework and plenty of time-saving features, this hydraulic press sets the standard by which all other models should be measured.

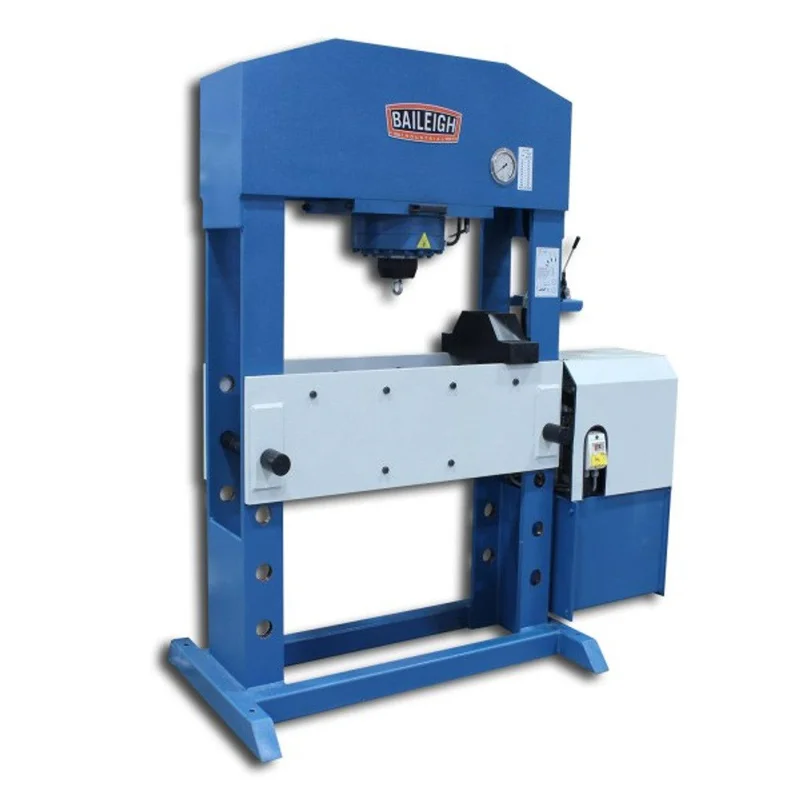

Baileigh HSP-110M-HD Hydraulic Press Features:
- 110-ton capacity.
- 42.12” working width.
- 8.66” diameter cylinder with 11.8” stroke.
- Runs on 220-volt 3-phase power.
- 7.5 hp motor can push all 110 tons of force without strain.
- cylinder moves left or right within the framework so you can apply force for off-center projects.
- 2-speed down movement (rapid or slow descent) with pressure regulator.
- 6.3” chrome piston automatically returns to top position after the job is done.
- Welded steel construction maintains accuracy, holding up under the machine’s full force without flexing.
- Baileigh backs this hydraulic shop press with a 1-year parts warranty.
Baileigh HSP-110M-HD Specifications:
- Item Number: HSP-110M-HD-1.0
- Return Speed: .393″ / sec.
- Maximum Pressure: 3858 psi
- Motor: 7.5 hp
- Piston Head Diameter: 4.72″
- Pump Speed: 1.5 / 5.17 gal/min.
- Oil Capacity: 7.92 gal
- Working Speed: .106″ / sec.
- Working Width: 36.22″
- System Oil Capacity: 3.17 gal
- Lowering Speed: .362″ / sec.
- Maximum Capacity: 110 tons
- Cylinder Stroke: 15.75″
- Cylinder Movable: Yes
- Cylinder Diameter: 10″
- Rpm: 3000
- Power: 220V / 3-phase
- Shipping Weight: 3400lbs
- Shipping Dimensions (Inches): 98x48x95
