Baileigh Industrial – 220V 1Phase Inverter Driven Drill Press 3 Speed Power Down Feed 1-1/2″ Mild Steel Capacity

Description

Details

Baileigh Industrial 1002923

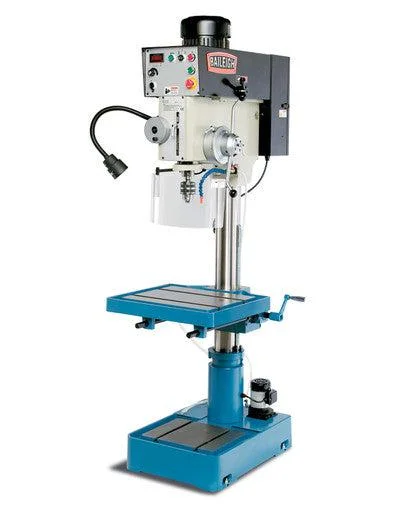

Drill smarter and harder with this 20” floor-type drill press which tackles hefty capacities at up to 2000 rpm. Built to deliver precise results for years, the DP-1500VS comes equipped with a variety of time-saving and performance-enhancing features. You can extend tooling usage by adjusting the inverter-driven head and quill speed to each different drill size. Continuous speed range, instead of just a few pre-set speeds, allows you to fine-tune the setting as you work. We use only the best-quality heavy metal castings for the base and table to add to the overall strength of the drill press.

Baileigh Industrial 1002923 Includes

• (1) Drill Press

Baileigh Industrial 1002923 Features

• 2 hp motor runs on 220-volt single-phase power and will work practically anywhere.
• Handles a maximum drilling capacity of 1.5” steel and 1.75” cast iron.
• Auto-reversing tapping feature has a capacity of .937”.
• Speed range from 65 to 2000 rpm lets you pick the right setting for your project.
• Potentiometer dial controls the drill speed.
• Digital readout on the front displays the speed in rpm for easy checking.
• Sophisticated Delta® inverter drives #4 Morse taper spindle.
• Chuck with automatic tool ejector simplifies tooling changes.
• Large, machined 22” x 18.5” drill table offers plenty of room for material.
• Oversized .625” T-slots allow for secure clamping of a vise or fixture.
• Sturdy 4.52” column eliminates flex and boosts drilling accuracy.
• Cast base supports rigidity at maximum capacity.
• Power-down feed helps to prolong the machine’s lifetime of use.
• Safety guard around the spindle with a limit switch protects you and your shop.
• Powerful coolant system, housed in the base, keeps the drill from overheating and helps the drill last longer.
• Includes a bright halogen light that bends to enable you to see the material better as you work.
• Baileigh covers this drill with a 1-year parts warranty.

Baileigh Industrial 1002923 Specifications
