Description

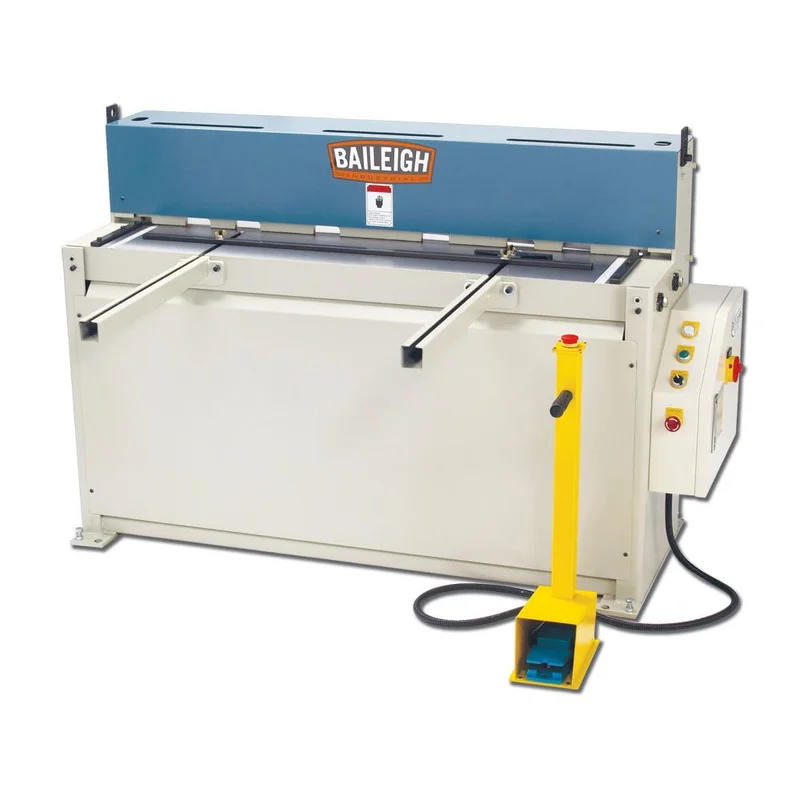

This hydraulic shear was one of the machines that got us started and built Baileigh’s quality reputation. With its welded steel frame, the SH-5210 sheet metal shear makes perfect cuts every time.
Baileigh SH-5210 Hydraulic Powered Shear Features:
- 52” length.
- 10 gauge mild steel maximum capacity.
- Minimum capacity of 24 gauge mild steel.
- 5 hp motor runs on 220-volt single-phase power.
- Up to 28 strokes per minute.
- Adjustable 24” backgauge ensures precise repeatability.
- Front support arms and table guides keep the material square to the blade.
- 3 modes on the operator console:
- Inch mode: Jog the control and ease the blade down to the material.
- Single mode: Make one cut cycle per foot pedal push.
- Auto mode: Continue cycling as you hold the pedal down.
- This hydraulic shear comes standard with high carbon chromium blades.
- Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
- Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
- Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.
- This 10 gauge sheet metal shear is covered by a 1-year parts warranty.
Baileigh SH-5210 Specifications:
- Item Number: SH-5210
- Back Gauge Length: 24″
- Shear Length: 52″
- Motor: 5 hp
- Thickness (SS): 10 ga. (13 ga.)
- Strokes Per Minute: 28
- Front Gauge Length: 24″
- Blade Angle: 1°
- Power: 220V Single Phase
- Shipping Weight: 3150lbs
- Minimum Material Thickness: 24ga
- Shipping Dimensions (Inches): 75x35x59
