Description

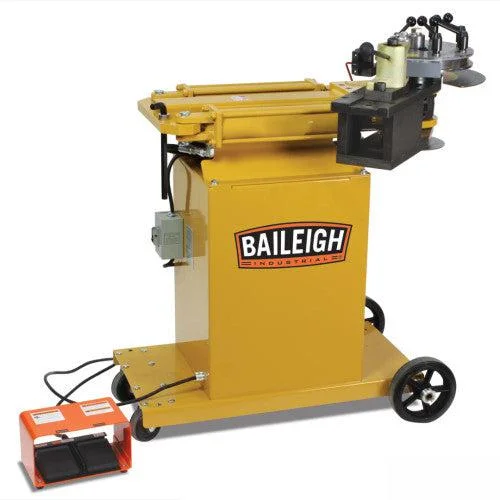

Baileigh broke new ground for hydraulic benders with the RDB-150—and we didn’t stop there! Made in the USA, this model improves on the original with an added auto-stop feature, for even more exacting standards.
Features:
- Powerful low-pressure hydraulic system operates on only110 volts.
- Tackles a maximum capacity of 2” schedule 40 pipe and up to 2.5” tubing with a wall thickness of .120” mild steel.
- Executes consistent 180° bends in one fluid motion.
- Auto-stop programmer lets you set the desired bend angle for convenient precision and repeatability.
- Quick-release counter die makes for fast loading and unloading.
- Easy-to-read degree indicator shows a bend’s progress.
- Compact machine includes wheels on the base for convenient storage in small shops.
- Use this machine for: Creating custom chassis, handrails, boilers, and metal art, among other projects.
Why choose the RDB-150-AS over comparable machines?
It’s the best buy in hydraulic pipe benders today, designed to make your fabrication shop more efficient.
Comes standard with auto-stop to save time and cut down on errors.
Accepts quality “drop-on” tooling from Baileigh, providing thousands of options for your application—many more than “sandwiched” tooling could offer.
Specifications:
| Item Number | RDB-150-AS |
| Country of Manufacture | United States |
| Minimum CLR | .5″ |
| Minimum OD | .25″ |
| Mild Steel Solid Rod | 1″ |
| Mild Steel Pipe Schedule 40 | 2″ |
| Mild Steel Round Tube Wall | 2.5″ (.125) |
| Mild Steel Square Tube (Wall) | 2″ (.125) |
| Stainless Steel Pipe Schedule 40 | 1.5″ |
| Stainless Steel Round Tube Wall | 2.375″ (.125) |
| Chromoly Round Tube Wall | 2″ (.125) |
| Aluminum Round Tube Wall | 2.5″ (.156) |
| Maximum Center Line Radius Clr | *7 – 8″ |
| Power | 110V |
| Shipping Weight | 610lbs |
| Special Notes | Tooling not included |
| Things to Know Before Purchase | All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; .heavy wall and high tensile materials .may reduce machine capacity. |
| Shipping Dimensions (Inches) | 60x44x77 |
