Baileigh 3-in-1 Combination Shear Brake and Roll 12″ Bed Width 20 Gauge (1006957)

Description

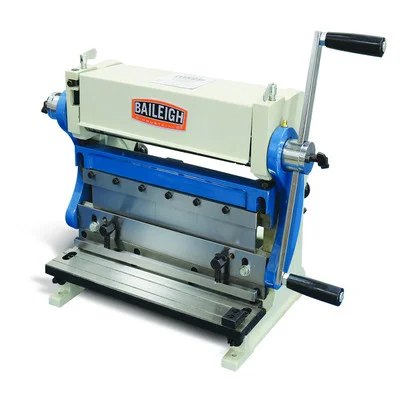

Baileigh 3-in-1 Combination Shear Brake and Roll 12″ Bed Width 20 Gauge (1006957) is designed for versatility and efficiency. Ideal for hobbyists, maintenance, and R&D shops, this combination machine saves valuable space and performs multiple functions with precision.

The Baileigh 3-in-1 Shear Brake Roll can handle material up to 12” wide and has a maximum capacity of 20 gauge mild steel for all functions. The slip roll portion features hardened and polished shafts for long life, while the press brake portion allows for a maximum bend angle of 90°.

• Specifications and Dimensions
  • Length: 36 in.
  • Width: 17 in.
  • Height: 17 in.
  • Net Weight: 135 lbs
  • Maximum Capacity: 20 gauge mild steel
  • Forming Width: 12”
  • Minimum Rolling Diameter: 1.54”
  • 3 Wire Forming Grooves
  • Maximum Bend Angle: 90°



• Key Features and Benefits
  • Handles up to 12” wide material
  • Slip roll with hardened and polished shafts for durability
  • Adjustable fingers for varying box sizes
  • Consistent bending with adjustable frame and camber tooling
  • Hardened, reversible shear blades for long life
  • Spring-loaded hold-down reduces waste
  • Large, double-sided handles for easier operation
  • Manual back gauge for repeatability
  • Sturdy steel frame ensures accuracy
  • 1-year parts warranty and lifetime technical support
