Description

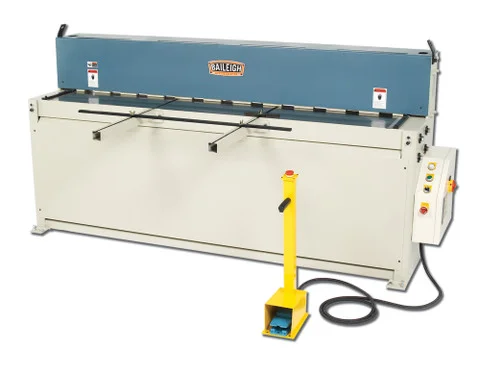

Baileigh 220V 3Phase Hydraulic Shear 80″ Length 10 Gauge Mild Steel Capacity (1007197) is designed to boost your production capabilities. This hydraulic shear can produce up to 24 strokes per minute, making it ideal for fabrication shops.
Featuring an 80” length and a maximum capacity of 10 gauge mild steel, this 1007197 hydraulic metal shear also handles a minimum capacity of 24 gauge mild steel. The adjustable 24” backgauge helps maintain precise repeatability, while the front support arms and table guides keep the material square to the blade.
- Specifications and Dimensions
- Length: 106 in.
- Width: 37 in.
- Height: 59 in.
- Net Weight: 4230 lbs
- Motor Phase: 3 Ph
- Stationary Type: Hydraulic Shear
- Maximum Capacity: 10 gauge mild steel
- Minimum Capacity: 24 gauge mild steel
- Strokes Per Minute: 24
- Voltage: 220 V
- Power: 5 Hp
- Key Features and Benefits
- 80” length shear for versatile cutting
- Handles up to 10 gauge mild steel
- Adjustable 24” backgauge for precise repeatability
- Rigid steel plate construction minimizes flex and maintains accuracy
- Hydraulic hold-downs clamp the sheet solidly to the table
- Three modes: Inch, Single, and Auto for various cutting needs
- High carbon chromium blades with 4 shearing edges for longer life
- Includes 1-year parts warranty and lifetime technical support
