Description

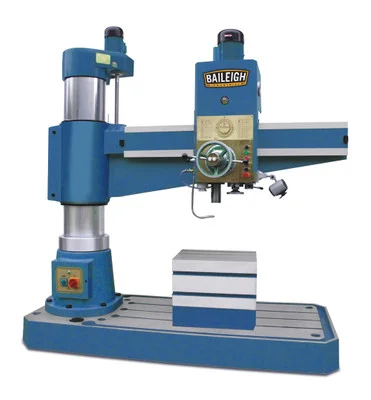

Baileigh 220V 3Phase Hydraulic Radial Drill MT5 Spindle Quick Tapping Chuck (1008486) is a robust solution for your fabrication shop’s drilling needs. This heavy-duty hydraulic radial drill press features a large swing and powerful motor, ensuring precision and efficiency in every project.
The 1008486 industrial drill press, along with the power down feed and box shape worktable, provides the versatility and durability required for industrial applications. The included quick and tapping chuck, spindle protection cover, industrial coolant system, and work light enhance its functionality and ease of use.
- Specifications and Dimensions
- Length: 109 in.
- Width: 45 in.
- Height: 102 in.
- Net Weight: 9500 lbs
- Max. Drill Capacity: 2″
- Diameter of Column: 13.7″
- Spindle Taper: MT5
- Spindle Travel: 12.4″
- Spindle Speed Range: 25 to 2000 rpm
- Range of Spindle Feeds: .001″ to .125″
- Spindle Feeds: 16
- Table Size: 24.8″ x 19.6″ x 19.6″
- Base Size: 94.4″ x 39.3″ x 7.8″
- Overall Size: 98” x 40”~96” x 103”~112”
- Motor: 5.25 hp
- Power: 220V 3-phase
- Key Features and Benefits
- Hydraulic radial drill press with 2″ maximum drilling capacity
- Heavy-duty construction with a 63″ column
- MT5 spindle for versatile applications
- Power down feed for efficient operations
- Includes quick chuck and tapping chuck for easy setup
- Comes with spindle protection cover, industrial coolant system, and work light
- Box shape worktable provides stable support for materials
