Description

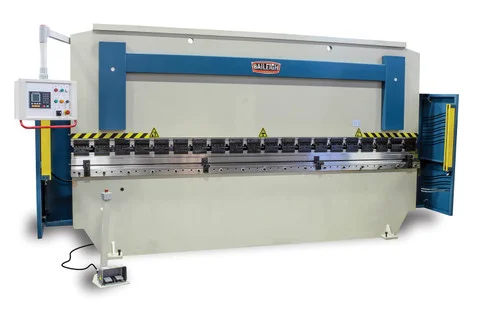

Baileigh 220V 3Phase 140Ton 157″ 2Axis Programmable Hydraulic Press Brake (1000787) is designed to handle heavy-duty bending tasks with precision and ease. Featuring a powerful 140-ton pressure capacity across its 13-foot length, this press brake is ideal for industrial applications.
This 1000787 industrial press brake runs on 220-volt 3-phase power and includes an industrial-grade Rexroth® hydraulic system for long-lasting performance. The fully-welded steel construction ensures structural integrity and accuracy, while the torque tube and chain drive linkage keep the hydraulic cylinders synchronized for balanced operation.
- Specifications and Dimensions
- Length: 185 in.
- Width: 73 in.
- Height: 97 in.
- Net Weight: 20850 lbs
- Maximum Capacity: 140 tons
- Overall Bend Length: 157 in.
- Back Gauge Length: 17144
- Return Speed: 2.36″ / sec.
- Throat Depth: 12.5″
- Stroke Distance: 4.7″
- Back Gauge Motor: 1/2 hp
- Bending Speed: .6″ / sec.
- Main Motor: 10 hp
- Power: 220V / 3-phase
- Key Features and Benefits
- 140 tons of pressure for heavy-duty bending
- 13-foot length for large projects
- 2-axis programmable control with Estun® E200 controller
- Torque tube and chain drive linkage for balanced operation
- Fully-welded steel construction for structural integrity
- Includes multi-Vee bottom die and gooseneck punches
