Description

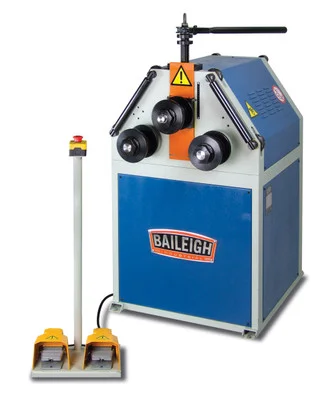

Baileigh 220V 1Phase 60 Htz Roll Bender Manual Top-Shaft Machine (1006855) redefines quality and efficiency in roll benders. Powered by 220 volts of single-phase power, it is ideal for any fabrication shop or job site, providing a maximum capacity of 2.75″ round tubing and 2” schedule 40 pipe.
This manual top-shaft machine with 2 driven rolls (3 rolls total) includes a large ratchet for extra leverage and control. The 1006855 manual roll bender operates in both vertical and horizontal modes, offering versatility for small and large projects. Its variable-speed inverter and easy-to-read scale ensure precision and repeatability in every bend.
- Specifications and Dimensions
- Length: 60 in.
- Width: 44 in.
- Height: 77 in.
- Net Weight: 650 lbs
- Shaft Diameter: 1.968″
- Shaft Center Distance: 13.12″
- Lower Roll Diameter: 5.827″
- Pinch: Single
- Power: 220V Single Phase
- Key Features and Benefits
- Manual top-shaft machine with 2 driven rolls
- Variable-speed inverter for precise control
- Operates in vertical and horizontal modes
- Includes segment rolls and lateral roll guides
- Heavy steel construction for durability
- Foot pedal controls for convenience
- 1-year warranty and lifetime technical support
