Description

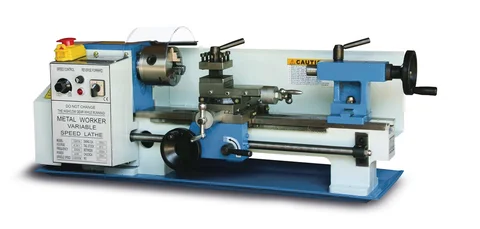

Baileigh PL-714VS 110V Variable Speed Bench Top Lathe (1228214) offers precision and versatility for metalworking tasks, making it a compact and economical choice for home garage shops. With a variable speed range from 100 to 2,500 rpm and a digital readout for spindle speed, this lathe ensures accurate and efficient operation.
This Baileigh 1228214 bench top lathe features a 14” bed length and 7” swing, capable of making both metric and standard threads. It includes 3-jaw and 4-jaw chucks to hold rounded and square materials securely. The steady rest and follow rest help maintain accuracy by preventing wobbling.
- Specifications and Dimensions
- Item Number: PL-714VS-V2
- Chuck Diameter: 4″
- Tool Slide Travel: 1.378″
- Spindle Accuracy: .001″
- Range Of Metric Threads: 0.5 – 2.5 mm
- Spindle Bore: .75″
- Range Of Inch Threads: 12 – 52 T.P.I.
- Motor: 3/4 hp
- Spindle Speed: 100 – 2500 rpm
- Spindle Taper: MT 3
- Taper Of Tailstock Quill: MT 2
- Max. Swing Over Bed: 7″
- Cross Slide Travel: 2.559″
- Distance Between Centers: 13.8″
- Power: 110V / 60Hz
- Shipping Weight: 170 lbs
- Shipping Dimensions: 48x31x20 in.
- Key Features and Benefits
- Variable speed from 100 to 2,500 rpm
- Digital readout for spindle speed
- Runs on 110 volts for versatile placement
- Capable of making metric or standard threads
- Includes 3-jaw and 4-jaw chucks
- Standard style tool post
- Steady rest and follow rest for high accuracy
- Splash guard for safety
- Catch pan for easy cleanup
- 1-year parts warranty and lifetime technical support
