Description

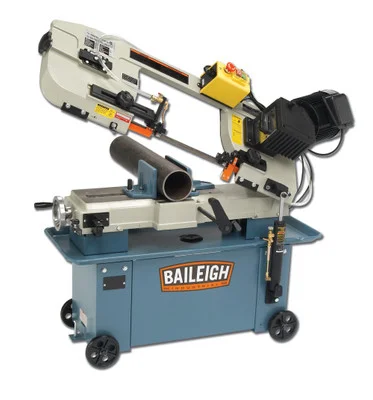

Baileigh 110 Volt Metal Cutting Band Saw with Vertical Cutting Option (1001680) is designed for versatility, offering both horizontal and vertical cutting capabilities. This compact saw is perfect for various jobs, whether you need to make general cutoffs or precise shape cuts.
The 1001680 metal cutting band saw features a 1 hp motor running on 120-volt single-phase power, making it suitable for almost any location. It has a cutting capacity of 7” OD round and 7” x 10.25” rectangle at 90°, with the ability to miter up to 45°. The cast iron saw head and bow minimize vibrations, ensuring clean and accurate cuts.
- Specifications and Dimensions
- Length: 60 in.
- Width: 44 in.
- Height: 48 in.
- Net Weight: 420 lbs
- Miter Adjustment Vise
- Miter Angle: 0 – 45°
- Motor: 1 hp
- Capacity Rectangular: 90 x 45 x 45L: 7″ x 10.23″ x 4.72″ x 4.13″
- Capacity Round: 90° x 45°: 7″ x 4.33″
- Table Height: 22″
- Blade Guide: Roller
- Blade Size: .75″ x .035″ x 92.91″
- Blade Speed (fpm): 125 x 215 x 270
- Descent Control: Hydraulic
- Drive: Gear
- Power: 120 volt
- Key Features and Benefits
- 1 hp motor runs on 120-volt single-phase power
- 7” OD round and 7” x 10.25” rectangle cutting capacity at 90°
- Miters up to 45° with a simple vise adjustment
- Cast iron saw head and bow minimize vibrations for clean cuts
- Operates in both horizontal and vertical positions
- Adjustable blade guides with 8 sealed ball bearings
- Heavy cast iron construction for durability
- Electro-welded steel plate framework for strength and stability
- Portable with wheels for easy movement
- Includes chip removal brush and flood coolant system
- 1-year parts warranty and lifetime technical support by phone
