Description

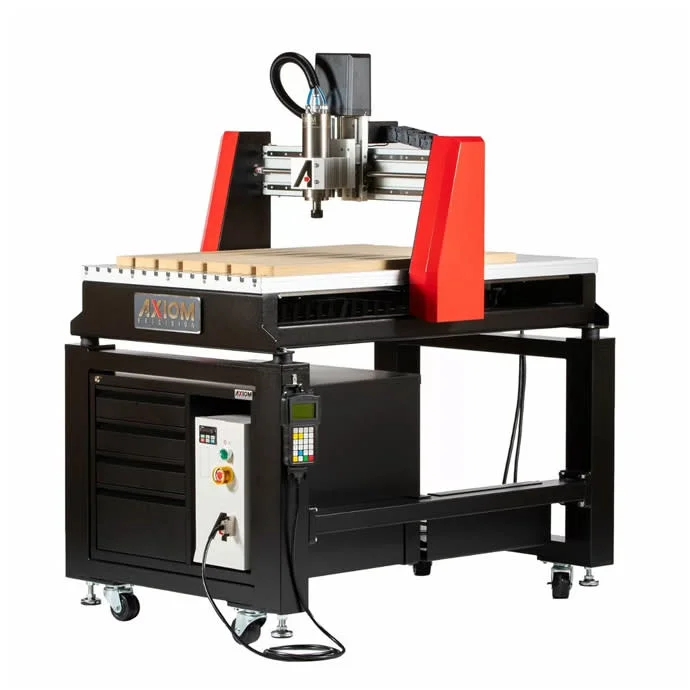

The Axiom Precision AR6 Pro V6 is a high-performance CNC router table designed for precision and versatility. This machine is ideal for both professional and hobbyist woodworkers, offering unmatched accuracy and reliability for a wide range of applications.
Key Features:
• Powerful Liquid-Cooled Spindle: The AR6 Pro V6 is equipped with an advanced liquid-cooled spindle, providing increased cutting capabilities and longer tool life. This ensures optimal performance even during extended machining sessions.
• Robust Stepper Motors: Featuring 48-volt stepper motors, the machine delivers enhanced torque and precision, enabling smoother and more accurate machining across various materials.
• Precision Ball Screws: The machine utilizes precision ball screws on all axes (X, Y, and Z), ensuring high accuracy and repeatability in every operation.
• Versatile Worktable: The 24″ x 36″ worktable is designed for easy setup and adjustment, featuring LED light indicators for precise positioning of bars and locking systems. This minimizes setup times and reduces errors.
• User-Friendly Interface: The AR6 Pro V6 is controlled via an intuitive touch-screen interface, making it easy to manage and operate. The software suite includes comprehensive • CAD/CAM programming tools, streamlining the production process.
• Safety Systems: The machine includes advanced safety features such as bumper protections and a ProSpace system, which ensures safe operation without the need for perimeter fences. This design allows for 360° accessibility, optimizing workspace and facilitating easy loading and unloading.
Technical Specifications:
• Working Area (X-Y axes dimensions): 24″ x 36″
• Axes Vectorial Speed (X-Y axes): High-speed operations for efficient machining.
• Spindle Motor Power: 3 HP
• Cutterhead Speed (RPM): 24,000
• Input Power: 220 Volt Single Phase
• Accuracy: +/- 0.00393″
• Maximum Engraving Speed: 350 inches per minute
Options:
• AR6 Pro Stand
• Toolbox
• Pro Dust Shoe
• Overarm Dust Assembly
• Pendant Protector
• USB Thumb Drive
• Hold Down Clamps
• Lateral Clamp Kit
• Vacuum Hold-Down Kit
• LED Lamp Kit
• Rotary Kit
• 9pc CNC Bit Set with Spektra Coating
• 3pc 1/4″ Shank CNC Starter Bit Set
• 2pc CNC Sign-Making Bit Set
• 2pc CNC Carving Bit Set (1/4″ Shank)
• 3pc CNC Inlay Bit Set
• 2pc CNC Plastic Bit Set
• 2pc CNC Aluminum Bit Set
• Aspire V11.x Software
• VCarve Pro v11.x Software
• PhotoVCarve Software
• SureGrip Spoilboards for 2′ x 4′ Area
• Laser Safety Scanner
