Description
Autel Ldw System With Ms906Pro Tablet Package (MA600CORE2)
The MA600CORE2 is a comprehensive LDW calibration package that includes the Autel MA600 mobile ADAS calibration frame with crossbar extensions, MS906PRO advanced diagnostics tablet with ADAS calibration software upgrade and Bluetooth-enabled VCI200, LDW targets and patterns and vehicle positioning accessories. Includes LDW patterns for VW and Porsche and Subaru, and I LDW targets for Nissan, Infiniti, Mazda, Mitsubishi, Mercedes, Hyundai, Kia, Honda, Acura, Toyota and Lexus. The package also include vehicle positioning accessories including two- and five-line lasers, Laser Reflectors, L-bracket and digital tape measure. Package is covered by a one-year limited warranty.
- Portable – Easily foldable frame create freedom to calibrate faster in many locations
- Precise – The new distance laser and accessories provide a quicker leveling process with vehicle for Millimeter Ruler Accuracy
- Adjustable – Fine-tuning nobs to easily
Hardware Features
- Precise millimeter-level accuracy with multiple laser positioning and measurement tools
- Portable flexible and easy for storage: quickly folded for transport
- Affordable modular frame assembled with accessory tools for calibration
- Affordable easy to move
Software Features
- Smart compatible use with leveling lift adjustment
- Accurate regular updates of latest OE-level diagnostic and calibration software
- Accurate correct calibration
- Intuitive tutorial graphics and step-by-step instructions
- Intuitive Pre-Scan and Post-Scan Reports (ADAS module identification, calibration)
- Expansive wider vehicle coverage
- Expansive extend camera calibration to AVM and RCW systems with purchase of oversize patterns

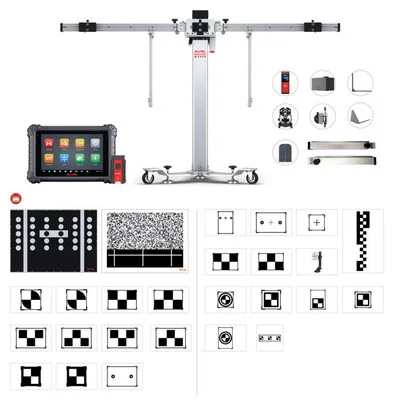

Package Includes
- MA600 Calibration System
- Calibration Frame
- Digital Tape Measure
- Two Line Laser
- L Bracket
- Five Line Laser
- Plumb Line
- Laser Assisted Reflector
- Laser Reflective Board
- New Crossbar Extension
- LDW Targets
- Volkswagen, Porsche, Subaru, Nissan, Infiniti, Mazda, Mitsubishiu,
- Mercedes, Hyundai, Kia, Honda, Acura, Toyota, Lexus
- MaxiSys MS906PRO Tablet
- VCI200 Bluetooth Vehicle Communication Interface
- ADAS Software Upgrade
Specifications
- Shipping Dimensions: 43″ W x 59″ L x 48″ H
- Shipping Weight: 396 lbs.
Pattern Board Specifications
- Pattern Board Size (LxW): 1360mm (53.54″) x 960mm (37.80″)
- Rated Power: 24V, 3A
- Laser Rated Power: 3V, 25mA
- Laser Battery Type: AA 2×1.5V
- Calibration Frame Working Temp: 0_ to 50_
- Calibration Frame Storage Temp: -20_ to 60°C
- Laser Class: Class 2
- Certification: CE, FCC, RoHS
