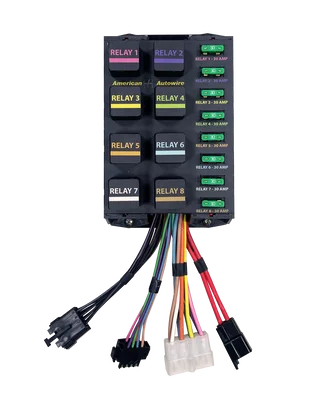

American Autowire 8-Position Banked Relay Panel (AAW510924)

Description

The American Autowire 8-Position Banked Relay Panel (AAW510924) is a professional-grade wiring solution designed to centralize and simplify the electrical system in your vehicle. This pre-assembled panel provides a clean and organized way to manage high-current accessories like electric cooling fans, fuel pumps, and headlights. Whether you’re working on a new custom build or cleaning up the wiring in a classic car, this universal kit offers a robust and reliable foundation for your electrical needs.

KEY FEATURES AND BENEFITS:

• Comes fully assembled with eight 30-amp relays and corresponding fuses.
• Each relay can be individually configured for either ground or 12-volt operation.
• Built with robust 6-gauge bus bars for stable power distribution.
• Non-conductive G10 composite base plate ensures electrical and heat insulation.
• Includes durable GXL wire, resistant to heat and abrasion.
• Helps organize and declutter modified vehicle wiring for a professional finish.

SPECIFICATIONS:

• Part Number: AAW510924
• Dimensions: 4.5″ x 7.5″ x 3.25″ (Height)
• Relay Capacity: 30 Amp
• Bus Bars: 6 Gauge
• Wire Length: 48 inches per lead
• Included in Purchase: Fuses, 30 amp relays, color-coordinated labels, detailed installation instructions, 48-inch wire leads, and hardware

HOW TO USE:

1. Mount the Panel: Securely mount the panel in a convenient, protected location in your vehicle using the included hardware.
2. Connect Main Power: Connect your main power feed to the panel’s Terminal 30 to provide the primary power source for all relays.
3. Wire the Accessories: Connect the main power output (Terminal 87) from each relay to the positive lead of its corresponding accessory.
4. Connect Control Wires: For 12-volt operation, connect a switched 12-volt source to Terminal 85 and a ground to Terminal 86. For a ground-triggered setup, connect Terminal 85 to a constant 12-volt source and use a switched ground on Terminal 86.
5. Install Fuses and Relays: Insert the included fuses and relays into their designated positions on the panel, using the labels for correct placement.

BENEFITS OF USING THE AMERICAN AUTOWIRE 8-POSITION BANKED RELAY PANEL (AAW510924):

• Protects Low-Current Devices: Prevents high-current loads from damaging switches or low-current components.
• Organized Wiring: Centralized panel offers a neat, professional installation.
• Simplified Troubleshooting: Easy-to-read labeling and layout help quickly identify and resolve issues.
• Versatile Application: Configurable relays support both ground and 12-volt operations.

FEATURES:

• Pre-assembled for quick and easy installation
• Eight relay positions for managing multiple accessories
• Supports both ground and 12-volt relay configurations
• Durable non-conductive G10 composite base construction
• Equipped with heavy-duty 6-gauge bus bars
• 48-inch heat- and abrasion-resistant GXL wire leads included
• Color-coded labels for simplified identification
• Provides a secure, centralized solution for high-current accessories
