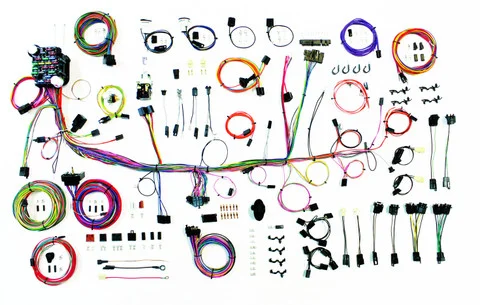

American Autowire 1974-78 Pontiac Firebird Update Kit (AAW510683)

Description

The American Autowire 1974-78 Pontiac Firebird Update Kit (AAW510683) is an all-inclusive wiring solution designed to replace and modernize the entire electrical system of your vehicle. This kit provides more circuits than the original factory harness and is ideal for custom or resto-mod projects. It supports electronic fuel injection (EFI), aftermarket gauges, and high-output charging systems, ensuring superior safety, reliability, and performance for years to come.

KEY FEATURES AND BENEFITS:

• Expanded Circuit Capacity: New ATC blade-style fuse panel provides additional circuits to safely power modern accessories and custom modifications.
• Enhanced Reliability and Safety: Modern ATO fuses and GXL wire reduce the risk of shorts and electrical failure compared to original wiring.
• Simplified Installation: Wires labeled every 3-5 inches and full-color schematics make installation straightforward.
• Support for Modern Systems: Compatible with EFI, electronic ignition systems (HEI/MSD), and high-output alternators.
• Flexibility for Custom Projects: Extra-long leads and cluster harness disconnect system allow routing for a variety of engine and transmission setups.

SPECIFICATIONS:

• Dash Harness with Gauge Cluster Disconnect System
• Engine Harness with extra-long leads
• Front Light Harness with extra-long leads
• Rear Body Wiring Harness with extra-long leads
• New ATO (blade-style) fuse panel
• 175 amp mega fuse kit with 6-gauge charge cable
• New headlight switch with 26-amp internal circuit breaker
• New floor dimmer switch
• Horn relay
• Turn signal and hazard flashers
• Original-style bulkhead connectors
• GM steering column connector and mating connector for earlier models
• Six-way power accessory plug
• Original-replacement connectors, terminals, and lamp sockets

HOW TO USE:

• Preparation: Disconnect the battery and remove the old factory wiring harness. Lay out the new harnesses to familiarize yourself with the components.
• Mount the Fuse Panel: Install the new ATC fuse panel in the original factory location without modifications.
• Install the Harnesses: Begin with the dash harness, connecting the headlight switch, dimmer switch, and gauge cluster. Then install the engine, front light, and rear body harnesses following the full-color schematics.
• Connect Accessories: Connect wires to the alternator, starter, ignition system, and lighting components. Use the accessory plug for aftermarket items.
• Final Checks: Verify all connections against the diagrams, install fuses, reconnect the battery, and test all electrical systems including lights, gauges, and accessories.

BENEFITS OF USING AMERICAN AUTOWIRE 1974-78 PONTIAC FIREBIRD UPDATE KIT (AAW510683):

• Improved Electrical Performance: Provides a clean, stable, and protected electrical environment for all vehicle systems.
• Longevity and Reliability: Replaces brittle factory wiring with modern, high-quality components.
• Customization Made Simple: Supports a wide range of popular modifications for custom builds.
• Enhanced Safety: Fuse panel, circuit breaker, and mega fuse kit offer superior protection against overloads and shorts.
• Easy Troubleshooting: Labeled wires and detailed diagrams simplify future diagnosis and repairs.

FEATURES:

• GXL wire for heat and abrasion resistance
• Pre-terminated dash harness ready for installation
• Full 12-volt primary ignition feed
• Cluster harness disconnect system
• Extra-long leads for custom routing
• Six-way power accessory plug for add-ons
• New headlight and floor dimmer switches included
• Supports internally regulated high-output alternators
• Includes 175-amp mega fuse kit
• Original-style bulkhead connectors for a clean installation
