Description

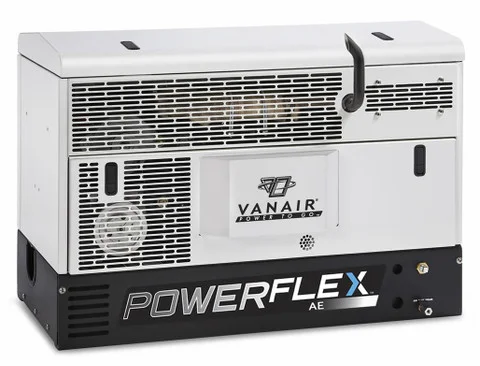

The Air N Arc PowerFlex AE Compressor and Generator are designed for reliability and versatility. This powerful unit operates without fuel or air storage, making it ideal for job sites, remote locations, and emergency backup. Its compact design allows it to fit into tight spaces while providing consistent performance easily. The advanced technology ensures efficient power delivery for tools and equipment, enhancing productivity. Whether you’re a contractor or a DIY enthusiast, this compressor and generator combo meets your needs without the hassle of fuel management.
Specifications:
- CFM Rating: 40 CFM @ High Speed
- AC Generator: 6,800 watts @ 60 Hz 120 / 240V
- Engine Type: 25 HP Kubota®
- Fuel Type: Diesel
- Air Pressure: 150 PSIG
- Compressor Type: Rotary Screw
- Drive System: Belt Driven
- Fuel Capacity: None, plumbs to truck’s fuel system
- Dimensions with fittings (in.) – 47.6 L x 21.0 W x 33.4 H*
- Dry weight (Lbs.) – 790
*Ratings are approximate and are based on 120° F hydraulic fluid temperature. Hydraulic relief valve is set at 3300 PSI. Consult Vanair for specific details.
Special Features
- Electrical 12V DC
- Side-mount or bed-mounted
- Powder coated, galvanneal sheet metal enclosure
- Operating conditions are -20° to +110° F
- 1/2″ FNPT Air Discharge
- Encapsulated oil-injected rotary screw
- Vanair Lifetime Warranty on air end
- Spin-on air-oil separated element
- On-off solenoid valve
- Air-to-oil compressor fluid cooler
- Integrated inlet valve
Air Compressor Control System
- Electronic Controlled Clutch
Safety Equipment
- Low engine oil shut down
- Alternator failure indicator
- Service access door shut down
- Engine over temperature shut down
- Air pressure safety relief valve and automatic blow-down on shut down
- High-temperature & high-pressure compressor shut down
- Oil fill plug safety relief
Instrumentation
- Engine start/stop
- Engine fault lights
- Hour meter
- Fuel gauge
- Generator / Air Compressor On/Off Switch
Options/Accessories
- Remote Control Panel Connection Harness (available in 6′, 10′, 14′, 18′, 22′, and 26′ lengths)
- Battery harness
- 14-60 Gal. air reservoirs
- Aftercoolers
- Air hoses
- Air Tools
- Hose reels
- OSHA safety valve (velocity fuse)
- Service/control line moisture separators
- Tool oiler/lubricator
- Air Reservoir Tank – 28 Gal. (Underdeck mounted tank with mounting brackets)*
- Air Reservoir Tank – 30 Gal.*
- Battery Cable extensions, 2 GA Positive and Negative (for connection to chassis battery, available in 8’, 12′, 16′, 20′, and 24′ lengths)
- Filter Lubricator Regulator (FLR) 1/2”
- Fuel Tank Assembly – Diesel – Slim line One Gal., Fuel Gauge Sender
- Harness, AC Electric Splitter
- Hose Reel – for 1/2” Hose – 50’ Hose not included
- Hose Reel – for 3/4” Hose – 50’ Hose not included
- Hose Reels: Vanair carries many different models (Call for configuration)
- Moisture Separator (Service line)
- OSHA Valve Up to 70 CFM (Excess flow safety valve) 1/2”
- Trunk line with Receptacle Box – 2 Duplex 120V GFCI Outlets – 10 FT
- Trunk line with Receptacle Box – 2 Duplex 120V GFCI Outlets – 25 FT
- Vibration Isolation Kit 1/2” (Includes 4 isolators)
* All tanks include a drain, check & pressure relief valve.
