Description

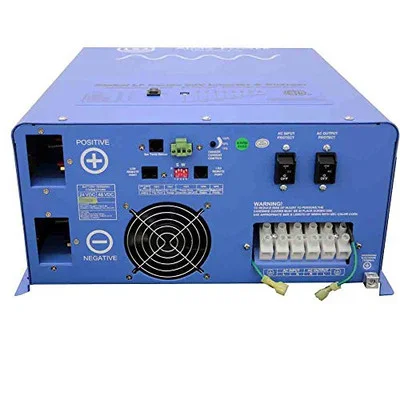

AIMS Power 6000W 18000W Peak Pure Sine Inverter Charger is a reliable, low-frequency inverter designed to provide stable and consistent power for off-grid systems, RVs, homes, and commercial applications. Featuring a multi-stage 60A smart charger, it’s compatible with GEL, Lead, AGM, and Lithium batteries. The unit also has a selectable power-saving mode, and remote panel options, and is UL and CSA listed for safety. Its durable, marine-coated design ensures reliable performance in tough environments.
Key Features & Specifications:
- Continuous Output Power: 6000 Watts
- Surge Rating: 18000 Watts (20 Seconds)
- Output Voltage: 100-110-120Vac (Single Phase)
- Output Breaker: 80 Amps
- Output Waveform: Pure Sine / Same as Input (Bypass Mode)
- Nominal Efficiency:>88% (Peak)
- Line Mode Efficiency:>95%
- Output Frequency: 50Hz ± 0.3Hz / 60Hz ± 0.3Hz
- Typical Transfer Time: 10ms (Max)
- Total Harmonic Distortion (THD): < 10% DC
- Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Input Voltage: 24.0V DC
- Charger Rate: 60A
- High Voltage Alarm: 32.0V DC
- Low Battery Voltage Restart: 26.6V DC
- Idle Consumption: 52.5W / Power Save Mode: <25W>
- Remote Panel: Available (LED or LCD)
- Transfer Switch: 80A Automatic (10ms Max)
- Certifications: UL 458, UL 1741, UL 1012, CSA 22.2 No. 107.1 & 107.2
- Warranty: 2 Years
Key Benefits:
- Versatile: Works with multiple battery types including GEL, AGM, Lead, and Lithium.
- Efficiency: High-efficiency inverter with more than 88% peak efficiency and up to 95% in line mode.
- Surge Capability: Handles a 300% surge, up to 18000W for 20 seconds, ensuring high power demands are met.
- Remote Monitoring: Offers a remote panel for easy monitoring and adjustments.
- Durability: Marine-coated and corrosion-resistant for extended use in harsh environments.
- Safety: Meets UL and CSA safety standards for reliable, compliant operation.
