Description

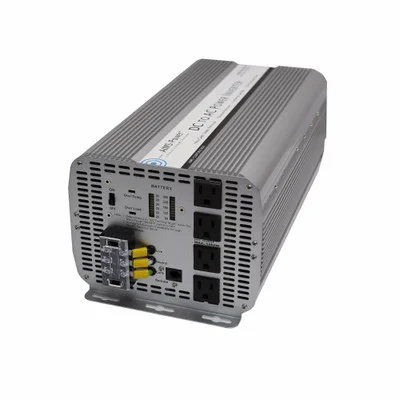

The AIMS Power PWRINV500048W 5000 Watt 48 Volt Power Inverter is designed to efficiently convert 48 volts of DC power from a battery bank into 120 volts of AC power, making it an excellent choice for a variety of applications. This inverter is particularly effective for powering devices in off-grid setups, RVs, or during power outages. The modified sine wave output is optimized for compatibility with many devices, while features like a volt meter and amp meter on the front panel allow for real-time monitoring of your battery and current usage. Designed for longevity and efficiency, this inverter includes built-in protections against overload and overheating.
Specifications:
- Continuous output power: 5000 Watts
- Surge power capability: 10,000 Watts
- DC input operating voltage: 39 to 64 Volts
- Output voltage: 120 Volts AC ± 10%
- Output waveform: Modified sine wave with phase correction
- Output frequency: 60 Hz ± 1 Hz
- Battery low voltage alarm: 40 ± 0.5 Volts
- Battery low voltage shutdown: 38 ± 0.5 Volts
- No load current: < 0.2 Amps
- Full load efficiency: 90%
- 1/3 load efficiency: 95%
- Minimum operating temperature: -15 degrees Celsius
- Maximum operating temperature: 55 ± 5 degrees Celsius (automatic shutdown)
- AC output socket type: Quadruple Type 2 – 3 prong
- High input voltage protection: 64 Volts
- Low input voltage shutdown: 38 Volts
- Internal fuse protection
- Dimensions (L x W x H): 16.92″ x 7.95″ x 6.10″
- Weight: 16.5 lbs (unit), 20 lbs (boxed)
- UL maximum recommended per outlet: 1500W
- Free 1-year tech support
- 1-year warranty on parts and labor
- Instruction manual included
- Pre-wired for remote on/off switch and pre-slotted mounting plate
