Description

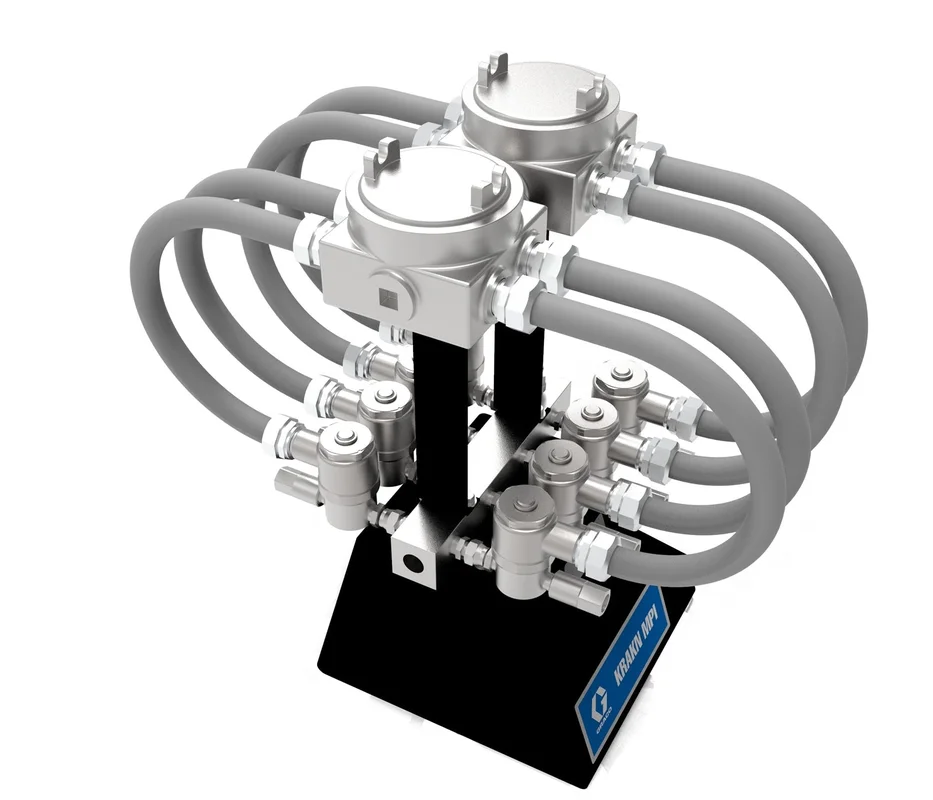

Replace up to eight chemical pumps with just one when used in conjunction with the KRAKN MPI fluid manifold. Pair it with Graco’s Harrier+ MPI control box and chemical pumps for best dosing accuracy.
Multi-point chemical injection for oil and gas wells and pipelines
- Reduced footprint and cost with up to eight injection points using one pump and one controller
- Uninterrupted operation and smart alarms
- Easy to service and operate
UPC Product: 00755652989776 Family Code: FAMMPI Unit of Measure: EA Height: 30 IN |76.2 CM Length: 19.75 IN |50.165 CM Width: 32.5 IN |82.55 CM Volume: .316 M3 |11.144 FT3 Chargeable Weight: 116.002 LBS | 52.593 KG
Technical Specifications
| Type | Fluid Manifold Assembly |
|---|---|
| Series | MPI |
| Application | Chemical Injection |
| Maximum Working Pressure (psi) | 3000 |
| Maximum Working Pressure (bar) | 207 |
| Input Voltage (V dc) | 24 |
| Maximum Input Current (A) | 0.4 |
| Maximum Sound Pressure Level (dB(A)) | 70 |
| Fluid Inlet Size (in) | 1/2 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Weight (kg) | 16.1 |
| Weight (lb) | 35.5 |
| Minimum Operating Temperature (°F) | -40 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 176 |
| Maximum Operating Temperature (°C) | 80 |
| Solenoid Classification | General Purpose Use |
| Model | KRAKN |
