Description

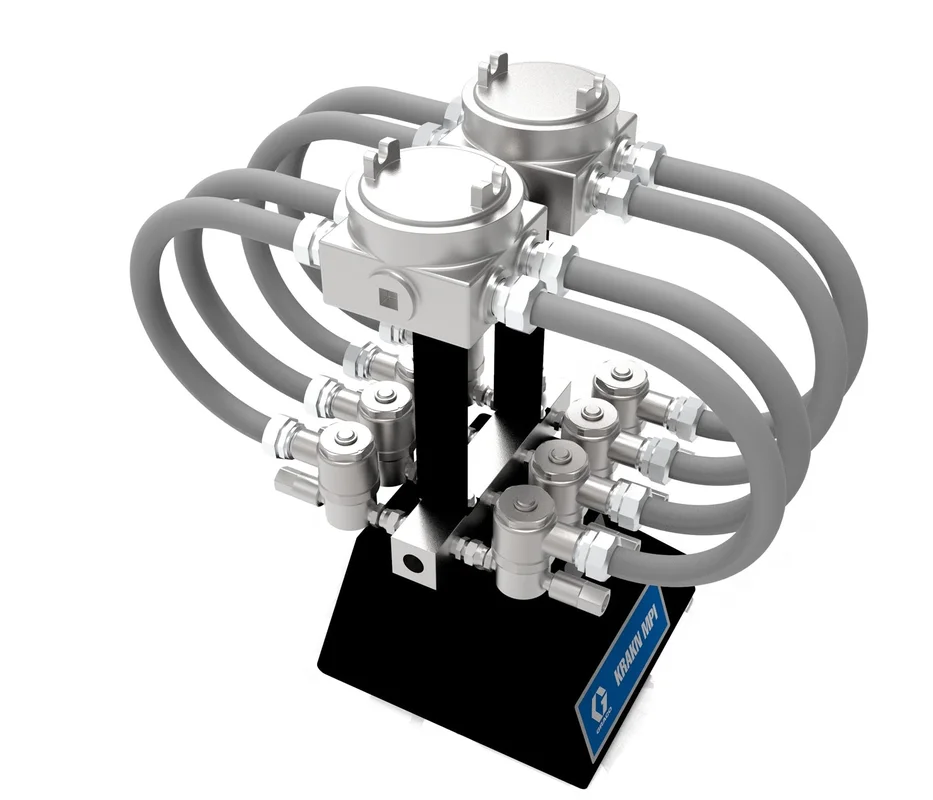

Replace up to eight chemical pumps with just one when used in conjunction with the KRAKN MPI fluid manifold. Pair it with Graco’s Harrier+ MPI control box and chemical pumps for best dosing accuracy.
Multi-point chemical injection for oil and gas wells and pipelines
- Reduced footprint and cost with up to eight injection points using one pump and one controller
- Uninterrupted operation and smart alarms
- Easy to service and operate
UPC Product: 00755652989745 Family Code: FAMMPI Unit of Measure: EA Height: 31 IN |78.74 CM Length: 19 IN |48.26 CM Width: 32 IN |81.28 CM Volume: 10.907 FT3 |.309 M3 Chargeable Weight: 113.543 LBS | 51.478 KG
Technical Specifications
| Type | Fluid Manifold Assembly |
|---|---|
| Series | MPI |
| Application | Chemical Injection |
| Maximum Working Pressure (psi) | 3000 |
| Maximum Working Pressure (bar) | 207 |
| Input Voltage (V dc) | 24 |
| Maximum Input Current (A) | 0.4 |
| Maximum Sound Pressure Level (dB(A)) | 70 |
| Fluid Inlet Size (in) | 1/2 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Weight (kg) | 18.8 |
| Weight (lb) | 41.5 |
| Minimum Operating Temperature (°F) | -40 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 176 |
| Maximum Operating Temperature (°C) | 80 |
| Solenoid Classification | Class 1, Division 1 |
| Model | KRAKN |
